HUBBELL DS315W INTERR 15A 3V 120/277VDEC WHITE

Name: HUBBELL DS315W INTERR 15A 3V 120/277VDEC WHITE
Brand: HUBBELL
SKU: DS315W
Price: 9.18 CAD
Availability: InStock

$9.18 CAD

Sale Sold out

Quantity

Description

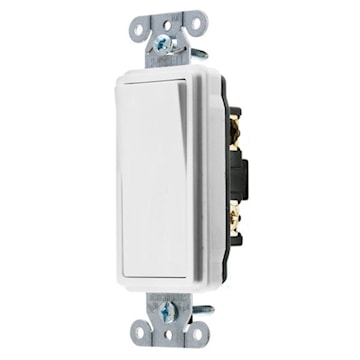

Decorator 3-Way Rocker Switch 15A, 120/277V, Back and Side Wiring.

Brand	Hubbell Wiring Device Kellems	Marketing name	AC Decorator Switches
Item Name	Decorator Switch	Kind	General Purpose, Heavy Duty, Standard, 3-Way, 2-Position
Nominal voltage	120/277 VAC	Nominal amperage	15 A
Maximum load	4155 W	Number of poles	1 pole
Action	Positive attachment	Actuator	Toggle
Power of contacts	According to UL 20	Contact arrangement	2 Position
Connecting the terminals	Screw	Operating cycles	50000
Material	Composite	Color	White
Mounting type	Flush, Screw	Nominal temperature	75°C maximum continuously, -40°C minimum without impact
Standards	NEMA WD1, UL 20	Application	For commercial use
UPC	783585108346
