HUBBELL RSD315W INTER DECOR 3W 15A 125VWHITE

Name: HUBBELL RSD315W INTER DECOR 3W 15A 125VWHITE
Brand: HUBBELL
SKU: RSD315W
Price: 17.47 CAD
Availability: InStock

$17.47 CAD

Sale Sold out

Quantity

Description

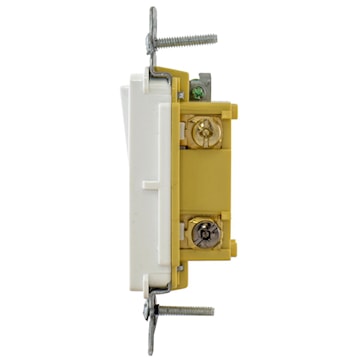

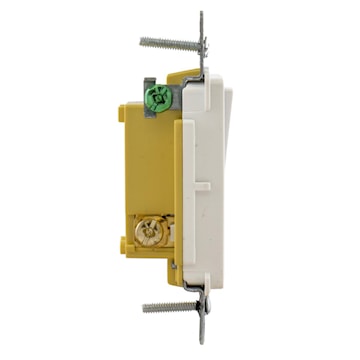

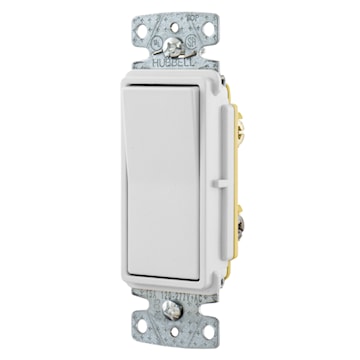

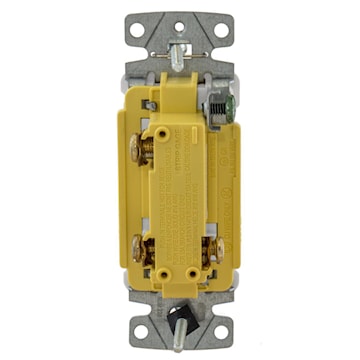

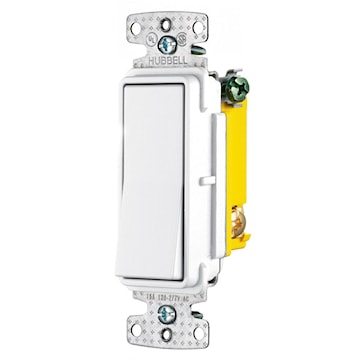

TradeSELECT® Decorator Quiet Single Pole Rocker Switch, General Purpose AC, Three Way, 15A 120/277V, Back and Side Wired.

Brand	Hubbell Wiring Device Kellems	Marketing name	AC Decorator Switches
Item Name	Decorator Switch	Kind	General purpose, standard, 3-way, 2-position
Nominal voltage	120/277 VAC	Nominal amperage	15 A
Maximum load	4155 W	Number of poles	1 pole
Action	Positive attachment	Actuator	Toggle
Power of contacts	According to UL 20	Contact arrangement	2 Position
Connecting the terminals	Screw	Wiring configuration	Push wire
Operating cycles	30000	Material	Composite
Color	White	Dimensions	37.3mm W x 25.9mm D x 96.8mm H
Mounting type	Flush, Screw	Nominal temperature	60°C maximum continuous, -20°C minimum continuous without impact
Standards	NEMA WD1, UL 20	Application	For residential wiring devices
UPC	883778101250
