Benefits and Features
Level 2 fast charging with a maximum output power of 11.5 kW
Up to 42 miles of range per hour of charging

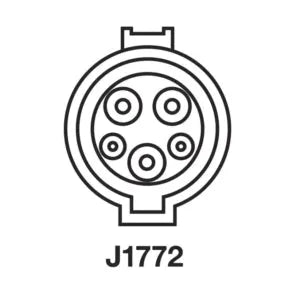

SAE J1772 charging connector
25ft Charging Cable
The SYLVANIA Smart WiFi app gives users ultimate flexibility over their use and monitoring of the PHASE EV charger, including setting various charging modes, scheduling charging sessions to take advantage of off-peak utility rates, and tracking their energy usage.
Integrated Wi-Fi (802.11 b/g/n/2.4 GHz) / Bluetooth® connectivity
Rugged NEMA 4X enclosure
IK10 impact protection
IP65
The dynamic LED indicator shows the charger status: standby mode, vehicle connected, charging, charging complete and fault indicator
Charging handle holder with integrated cable management includedProduct highlights
1. Materials Level 2 fast charging with a maximum output power of 11.5 kW at 48 A
Up to 42 miles of range per hour of charging
Plug & Play or can be controlled using the SYLVANIA Smart WiFi app
Built-in Wi-Fi (802.11 b/g/n/2.4 GHz) / Bluetooth connectivity
Rugged NEMA 4X enclosure
IK10 impact protection
IP65
The dynamic LED indicator shows the charger status: standby mode, vehicle connected, charging, charging complete and fault indicator
Charging handle mount with integrated cable management included
2. Electric SAE J1772™ connector

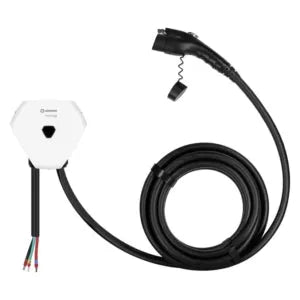

25ft charging cable

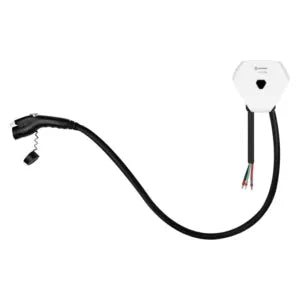

Hardwired (unit comes with a 28 inch input cable)
208-240 VAC
60 Hz
Max. output power of 11.5 kW
at 240 VAC
48 A max. output current
The output current can be adjusted between 1 and 48 amps using the SYLVANA Smart WiFi app
3. Operating temperature -30°C to 50°C (22°F to 122°F)
4. Certifications and approvals cETLus
FCC
ENERGY STAR®
RoHS
Complies with UL2594 standard
Complies with NEC625 standard
5. Communication WiFi (802.11 b/g/n/2.4 GHz)
Bluetooth®
Control via the SYLVANIA app
Smart WiFi
Plug & Play operation is possible
6. Installation Must be wired to a local junction box with a 60A double pole breaker at the electrical panel
The charger has a 28" 6 AWG input cable
The charger mounts to a wall with the included mounting bracket
Charging handle case with integrated cable wrap is included for neat storage
7. Warranty 3 years
NLB Trusted Warranty Program
Specifications
Features and functions
Level 2 charging mode
SAE J1772 Vehicle Connection (Type 1 Connector)
Charging cable length 25 feet
4.3 inch LCD display with charge status light bar
Communication
Wireless Connectivity Built-in Wi-Fi (802.11 b/g/n/2.4 GHz) / Bluetooth Connectivity
Firmware Over-the-Air (OTA) Upgradeable Firmware
Central LED Indicator Dynamic LED indicators indicate charging status: standby, device connectivity, charging, fault indicator
Electrical design
AC supply voltage level 2, 208/240 V
Nominal frequency 60 Hz
Nominal input current 48 A max
Max. output power 11.5 kW at 240 VAC
Hardwired Input Connection - by a licensed electrician
Main wire gauge 6 AWG
Power Requirements 208V (single phase), 240V (single phase), 60A Double Pole Circuit Breaker
Standard overcurrent protection
Standard ground fault protection
Standard Surge Protection
General design
Environmental classification NEMA 4 enclosure, IK10 impact protection
IP65 infiltration protection

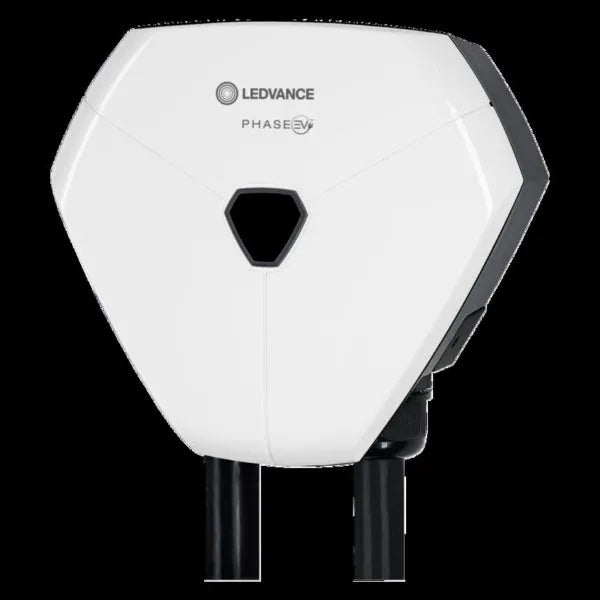

Dimensions Main case (W × H × D) 8.3 in × 7.7 in × 3.3 in (211 mm × 196 mm × 84.5 mm)
Storage temperature -22°F to 122°F (-30°C to 50°C)
Operating Temperature -22°F to 122°F (-30°C to 50°C)
Certifications and standards
ETL Standards, UL2594 Compliant, NEC625 Compliant
EMC FCC Part 15 Class B, ICES-003
ENERGY STAR® (EVSE v1.1) Yes
Warranty 3-year limited product warranty
