Accueil / LEVITON 18201-CW INTERR 15A 1P 347V WHITE

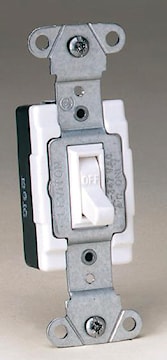

LEVITON 18201-CW INTERR 15A 1P 347V WHITE

Name: LEVITON 18201-CW INTERR 15A 1P 347V WHITE
Brand: LEVITON
SKU: 18201-CW
Price: 25.20 CAD
Availability: InStock

$25.20 CAD

Sale Sold out

Quantity

Description

15A, 347VAC, Rocker Switches, Single Pole Quiet Switch, Framed, Commercial Grade, Side Wired - White

Brand	Leviton	Marketing name	Comm Switches
Item Name	Commercial grade rocker switch	Kind	It's quiet
Nominal voltage	347 VAC	Nominal amperage	15 A
Number of poles	1	Actuator	Cam, Rocker / Button
Color	white	Engine power	1/2 HP at 120 V, 2 HP at 240 - 277/347 V
Grade	Commercial	Action	Of
Wiring configuration	Side thread	Connecting the terminals	Screw
Operating cycles	50000	Material	Thermoplastic
Dimensions	1.31" L x 0.92" D x 4.06" H	Assembly	Wall plate, flush, screws
Standards	Federal Specification WS-896, NEMA WD-1, WD-6, ANSI Approved, UL File No. E7458, CSA File No. 152105, NOM 057 Certified, UL Flammability Rating 94-V2	Application	Commercial
UPC	068679119263
