LEVITON 18201-W INTERR 15A 1P 347V WHITE

Name: LEVITON 18201-W INTERR 15A 1P 347V WHITE
Brand: LEVITON
SKU: 18201-W
Price: 25.20 CAD
Availability: InStock

$25.20 CAD

Sale Sold out

Quantity

Description

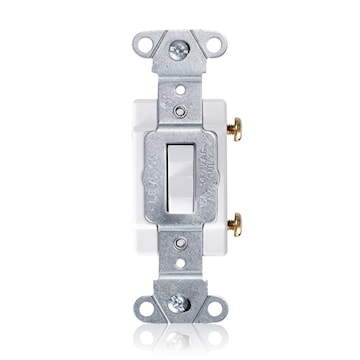

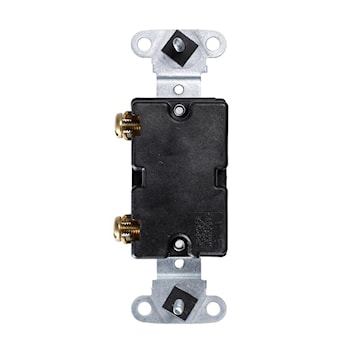

Single Pole, Heavy Duty, Canadian Specified Industrial Grade Rocker Switch, 15A, 347VAC, Back or Side Wired, White

Brand	Leviton	Marketing name	Comm Switches
Item Name	Industrial grade rocker switch	Kind	Single Pole Rocker AC Switch
Nominal voltage	347 VAC	Nominal amperage	15 A
Number of poles	1	Actuator	Cam
Color	White	Engine power	1/2 hp at 120 V, 2 hp at 240 - 277/347 V
Grade	Industry	Action	Of
Wiring configuration	Back and side thread	Connecting the terminals	Screw
Operating cycles	50000	Material	Thermoplastic
Dimensions	1.31" W x 1.3" D x 4.06" H	Assembly	Wall box, wall conduit, screws
Standards	Federal Specification WS-896, NEMA WD-1, WD-6, ANSI Approved, UL File No. E7458, CSA File No. 152105, NOM 057 Certified, UL Flammability Rating 94-V2	Application	Industrial
UPC	078477240052
