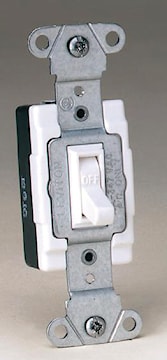

LEVITON 18203-CW INTERR 15A 3V 347V WHITE

Name: LEVITON 18203-CW INTERR 15A 3V 347V WHITE
Brand: LEVITON
SKU: 18203-CW
Price: 21.38 CAD
Availability: InStock

$21.38 CAD

Sale Sold out

Quantity

Description

15A, 347V AC, Rocker Switches, 3-Way AC Toggle Quiet Switch, Framed, Commercial Grade, Side Wired - White

Brand	Leviton	Marketing name	Comm Switches
Item Name	Commercial grade rocker switch	Kind	3-way, quiet AC
Nominal voltage	347 VAC	Nominal amperage	15 A
Actuator	Cam	Color	White
Engine power	1/2 hp at 120 V, 2 hp at 240 - 277/347 V	Grade	Commercial
Wiring configuration	Side thread	Connecting the terminals	Screw
Operating cycles	50000	Material	Thermoplastic
Dimensions	1.31" W x 0.92" D x 4.06" H	Assembly	Wall plate, flush, screw-on
Standards	Federal Specification WS-896, NEMA WD-1, WD-6, ANSI Approved, UL File No. E7458, CSA File No. 152105, NOM 057 Certified, UL Flammability Rating 94-V2	Application	Commercial
UPC	068679119423
