Accueil / LEVITON 2651-2W ALUM.SING.POLE TOGGLE SW.WH

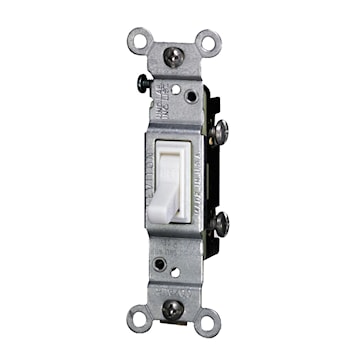

LEVITON 2651-2W ALUM.SING.POLE TOGGLE SW.WH

LEVITON 2651-2W ALUM.SING.POLE TOGGLE SW.WH

Regular price $12.90 CAD
Regular price Sale price $12.90 CAD
Sale Sold out

Description

Faster installation with the combination of side-wiring and Quickwire push-in wiring. Quickwire accepts conductors up to #12 AWG, #14 AWG in Canada. Side-wiring accepts conductors up to #12 AWG. Large-head, triple-gang combination screws (standard, Phillips, Robertson) for fast wiring installation. Lever and frame made of durable, impact-resistant thermoplastic. Note: CO/ALR devices are for termination of 12 or 10 AWG aluminum conductors. Backed by a two-year limited warranty. Leviton Residential Grade AC Quiet Switches, proven rocker designs, cover all the bases; they install easily and are available in standard and illuminated versions. Their rockers and frames are made of impact-resistant thermoplastic; they feature reinforced large-head, triple-gang screws for simple installation. Leviton's traditional switches are compatible with a wide range of Leviton plastic and metal wallplates. 15 Amp, 120 Volt, CU/AL Single Pole Toggle Quiet AC Switch, Residential Grade, Grounding, Side Wired - White

Specifications

Brand Leviton Marketing name CO/ALR DEVICES
Item Name Commercial grade rocker switch Kind AC Quiet
Nominal voltage 120 VAC Nominal amperage 15 A
Number of poles 1 Actuator Cam
Color White Engine power 1/2 hp at 120 V, 2 hp at 240 V
Grade Commercial Action Of
Wiring configuration Side thread Connecting the terminals Screw, grounding
Material Thermoplastic Dimensions 1.31" W x 1.1" D x 4.2" H
Assembly Wall plate, wall conduit, screws Standards Certified NOM 057, CSA File Number LR3413, UL File Number E7458, Flammability Rating UL 94-V2
Application Commercial UPC 078477851302

Packaging

1 - Unit 10 - Box 100 - Cash register 7200 - Pallet
